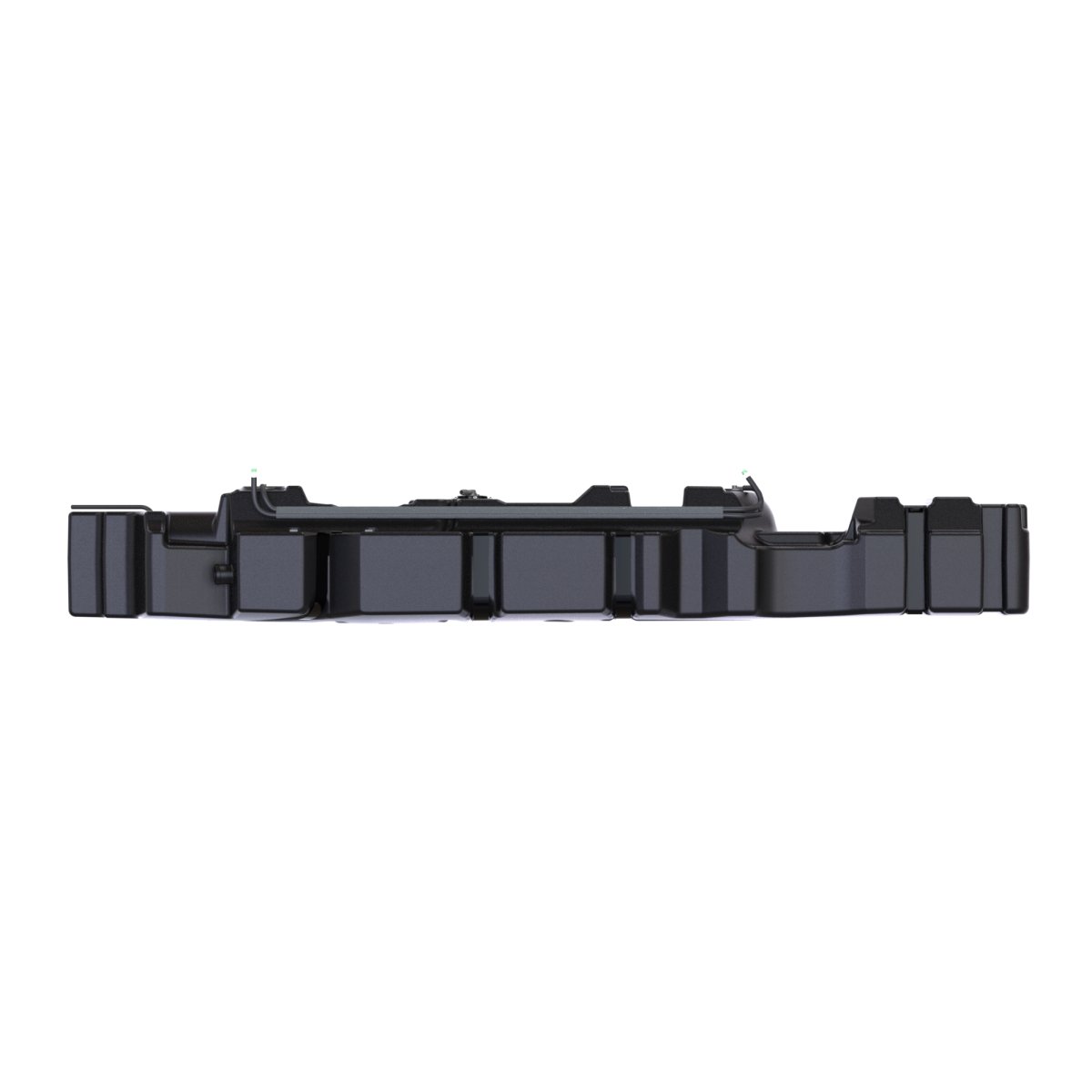

S&B Tanks 10-1031 45 Gallon High-Capacity Fuel Tank For 2019-2025 Mercedes Sprinter with 144" & 170" Wheelbase

Take your diesel further between fill ups with an oversized high capacity replacement fuel tank from S&B Fuel Tanks. Built to fit directly in place of your OEM fuel tank, S&B Fuel Tanks offer a significantly increased diesel fuel tank size. This gives you the flexibility to driver farther between fueling stops, and to take advantage of gas stations that offer the best quality fuel or the best prices. With S&B, you don't just get a tank - each Fuel Tank kit includes all the items you'll need for a complete installation. And unlike metal fuel tanks which can rust and corrode over time, S&B Fuel Tanks are built to last. Constructed from high-density 1/4 inch thick crosslink polyethylene, S&B is so confident in their tanks that they back them with a lifetime warranty!

Key Features

• Tank Mounts in Factory Location
• No Need to Move or Relocate any OEM Components
• Built from Quality High-Density Crosslink Polyethylene
• Won't Rust, Corrode or Delaminate Like Metal Tanks
• E-Coated Stainless Steel Tank Mounting Straps Included
• Factory Filler Neck is Reused
• Lifetime Manufacturer Warranty

Product Details

• 45 Gallon Replacement Tank for 24 Gallon Factory Tank
• 1.5 Inches Lower to Ground than Factory Tank
• Fits: 2019-2022 Mercedes Sprinter 2500/3500 144” & 170” Wheelbase w/ 2.0L & 3.0L Diesel
• Fits: 2020-2022 Winnebago Navion & View w/ 3.0L Diesel
• Fits: 2020-2022 Storyteller Classic Mode/Stealth Mode/Beast Mode 4×4’s w/ 3.0L Diesel
• Fits: 2022 Pleasure-Way Rekon 4×4 w/ 3.0L Diesel
• Fits: 2023-2025 Mercedes Sprinter 2.0L Diesel
• Fits: 2023-2025 Storyteller Classic Mode, Stealth Mode & Beast Mode 4x4 3.0L Diesel
• Fits: 2025 Winnebago Ekko 2.0L Diesel
• The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call S&B, send a message with your VIN, or consult with your installer to confirm if your van has J51.
• Please Note: This tank will NOT fit 144" Dually Vans, 170" Crew Vans (1 Row of Seats) or Vans with plumbing/items 24 inches from the rear end of the OEM tank or 19 inches from the rear end of the large cross-member. For those Vans, a shorter 40 gallon tank will work. For 2023+ part  S&B 10-1032. For 2019-2022 part 10-1027.

The S&B Tank comes with all the components to remove your 24 gallon tank and replace it with the 45 gallon tank. The tank mounts in the stock location with an additional rear strap. The tank occupies the space forward and rearward of the original tank and does not stick out anymore toward the driver side than the original tank.

Even with more fuel on board, your fuel gauge will remain accurate thanks to S&B’s tank design. From full to empty you will always know how much fuel is in your tank. The distance to empty however will still be calculated based on the stock fuel capacity. For example, @ 20mpg and a full tank (45 gallons) you will have 940 miles to empty but your vehicle will show you have 480 miles to empty.
