FASS TSD07100G Titanium Signature Series 100 GPH Lift Pump for 2005-2018 & 2021-2024 Dodge Ram Cummins
Fits
Change VehicleProduct isn't compatible with
Add a FASS Diesel Fuel Heater Kit
Add a FASS Fuel Sump Kit
Installation Instructions

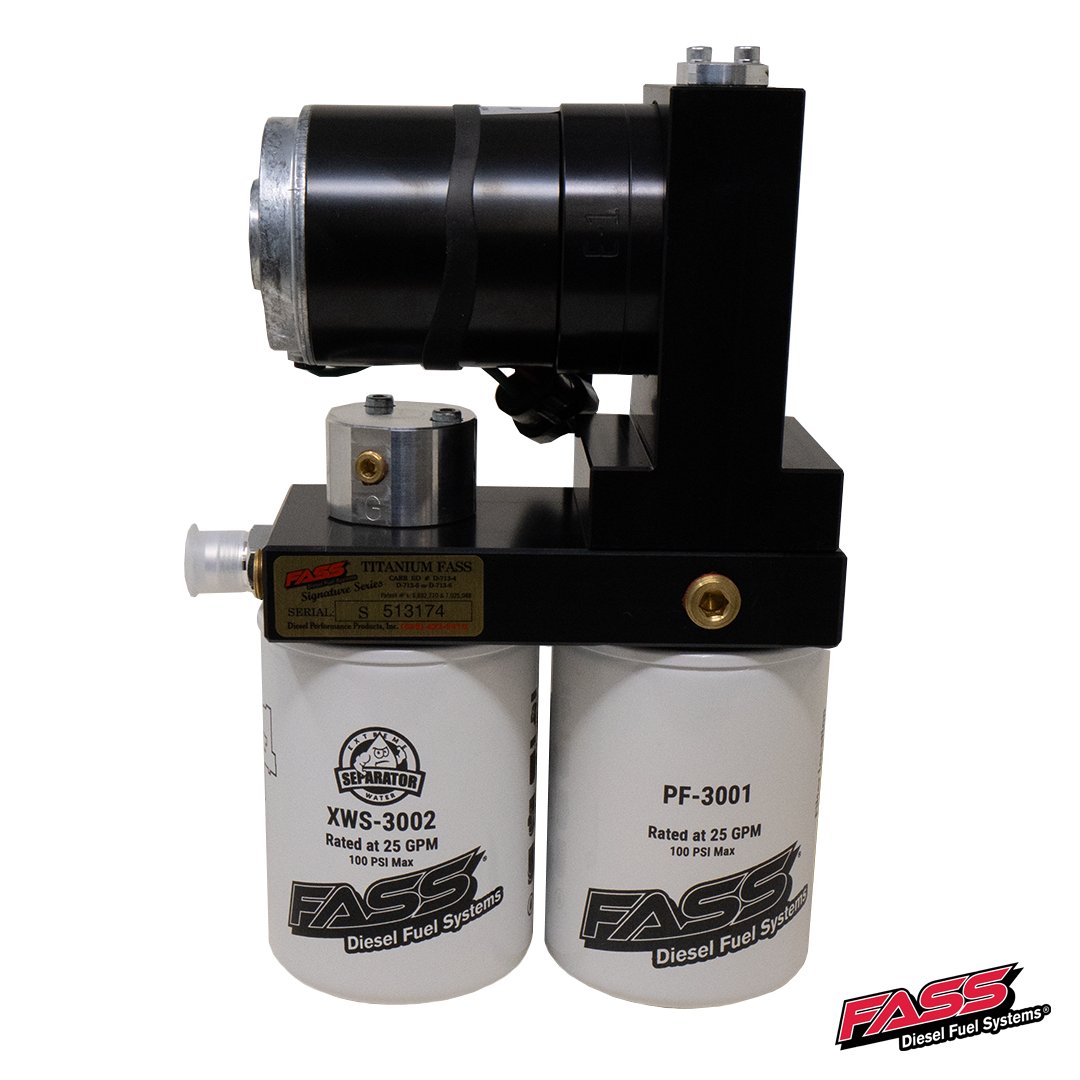

FASS Titanium Signature Series TSD07100G Details
The Titanium Signature Series diesel fuel system from FASS was engineered for exceptional performance, longevity and reliability. FASS knows their product is so well built they back it with a limited lifetime manufacturer warranty. Fass Titanium Signature Series fuel pumps remove potentially harmful and destructive fuel contaminants like water, air and general debris. They also increase your horsepower & fuel economy while lowering your maintenance costs & emissions. FASS Titanium pumps make for a far more efficient combustion event, creating far less soot and particulate matter. FASS pumps prolong diesel particulate filter (DPF) and exhaust gas recirculation (EGR) life, meaning less wear and tear on many engine and exhaust components as well as improved miles per gallon. Every diesel truck needs a FASS!
Key Features
- Fits 2005-2018 & 2021-2024 Dodge Ram 5.9L & 6.7L Cummins
- Rated at 100 Gallons Per Hour
- Supports From Stock Horsepower up to a Moderate 600 Horsepower
- Preset at 16-18 PSI Fuel Pressure

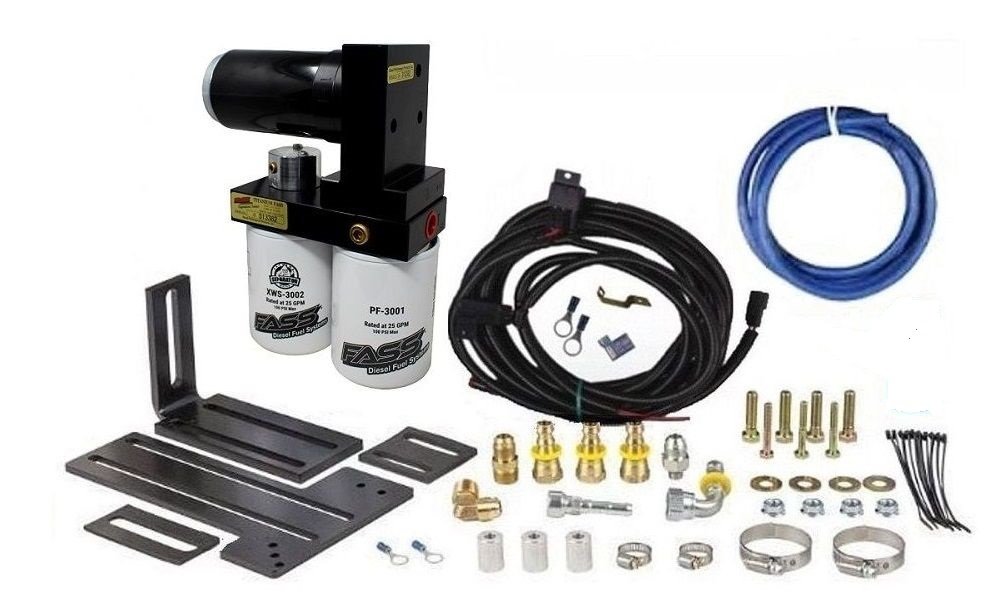

- Complete Replacement System
- Improved Cold Weather Starts
- Smoother Engine Idle
- FASS Whisper Technology Reduces Noise Levels, Not Flow Rates
- Performance Radius Cuts within the Aluminum Housing Create Smooth Fuel Flow
- Mass Flow Return Continuously Polishes Your Fuel & Prevents Cavitation
This kit includes two FASS BHF-1005 (Bulkhead and Suction Tube Kit). Machined from 6061 T-6 Billet Aluminum, the Bulkhead fittings function as both a suction and return tube. This new and improved version from our previous Suction Tube Kit allows the user to plum their FASS suction and return line directly to their bulkhead fitting which are mounted directly on the fuel tank module, eliminating all cutting of the filler neck, and significantly speeds up the installation process. The pickup tube is fabricated of PTFE Teflon which can be easily cut to adapt to different depth of fuel tanks. Properly installed, you can safely operate down to below 1/8 tank of fuel.
FASS Titanium Signature Series fuel pumps come with all the features for which FASS is known, in a compact package for a smaller profile – without sacrificing any of the power and performance you would expect in a heavy duty diesel fuel lift pump and filtration system. A FASS Titanium pump will give you better throttle response, increased injector life and improved fuel mileage. If you own a diesel pickup truck you owe it to yourself to add a FASS Titanium Signature Series fuel pump.
