Edge 14111-3 Revolver Kit with Insight CTS3 for 2002-2003 Ford Excursion 7.3L Powerstroke

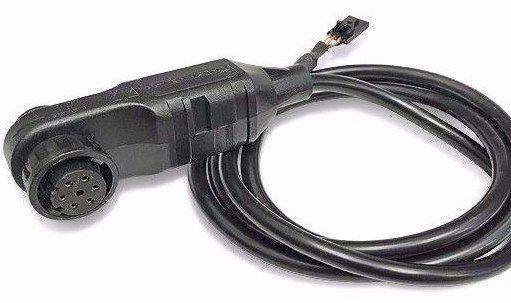

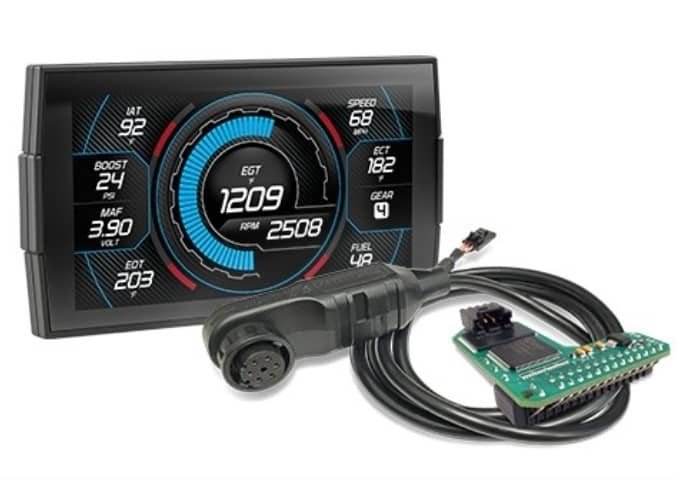

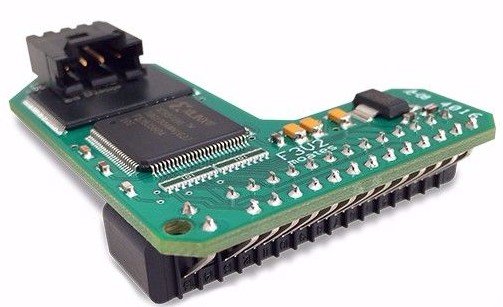

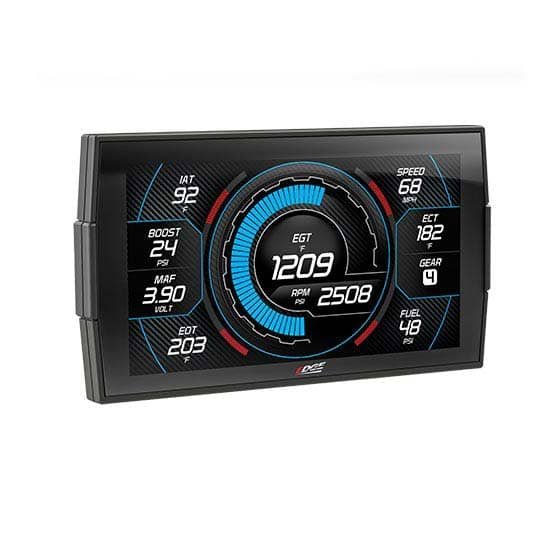

The six-position Edge Revolver chip for the Ford 7.3L diesel can now be controlled by the Insight CTS3! Change the power levels of your chip using the touchscreen of the Insight CTS3 monitor. These kits include the Revolver chip, Insight CTS3, and the new EAS Revolver cable that allows the Insight to connect to the chip. The six-position chip offers adjustable horsepower, up to 140 horses, using Edge’s Insight CTS3 display. Simply pull down the top menu and adjust the power levels or select the Retro Screen which allows switching between multiple power levels on-the-fly!

Key Features

• Shift-on-the-fly power levels with the Insight CTS3
• Full in-cab, state-of-the-art digital gauges
• Up to six options for performance and other various modes
• Revolver chips are loaded with 6 different power levels
• Add up to 140 HP and 250 lb-ft TQ
• Increase fuel economy
• Clear and read diagnostic trouble codes
• Easy installation with full color instructions



Edge Revolver Chip Tune Levels:

Level 1: Stock Tune
Level 2: High Idle
Level 3: 50 Horsepower
Level 4: 75 Horsepower
Level 5: 100 Horsepower
Level 6: 140 Horsepower

How to Order an Edge Revolver Chip

You will need some information from your truck before you order an Edge Revolver Chip. First, you will need the “ECU Code” from your truck’s ECU. It is easy to find- just look for your ECU which will be located behind the Driver’s Side Kick Panel where there is a black plug that will have a sticker on the plug that shows the ECU code. In the case that this sticker isn’t there or the plug has been removed then you can look in the engine compartment where the main harness connection connects to the ECU. In some cases you can put your phone down by the connector and take a picture of it to reveal the ECU code. If you can’t see it then you may need to remove the ECU. There will be a large 4 Digit Code there that are 3 letters and 1 number. These “ECU Codes” identify what ECU is in your truck, and they come in groups. Some examples might be NVK2 and NVK4, which share the same tunes which would have the same “Box Code”, but have different ECM codes. Here is an example of what your ECM code will look like on the ECM.

Edge Part number 14111-3 is designed for a 2002-2003 Ford Excursion 7.3L Power Stroke. The Master ECU Code for the 14111-3 is NQW2. This Master ECU code supports the following ECU codes MAP, NQW, QLJ, and SHT.
