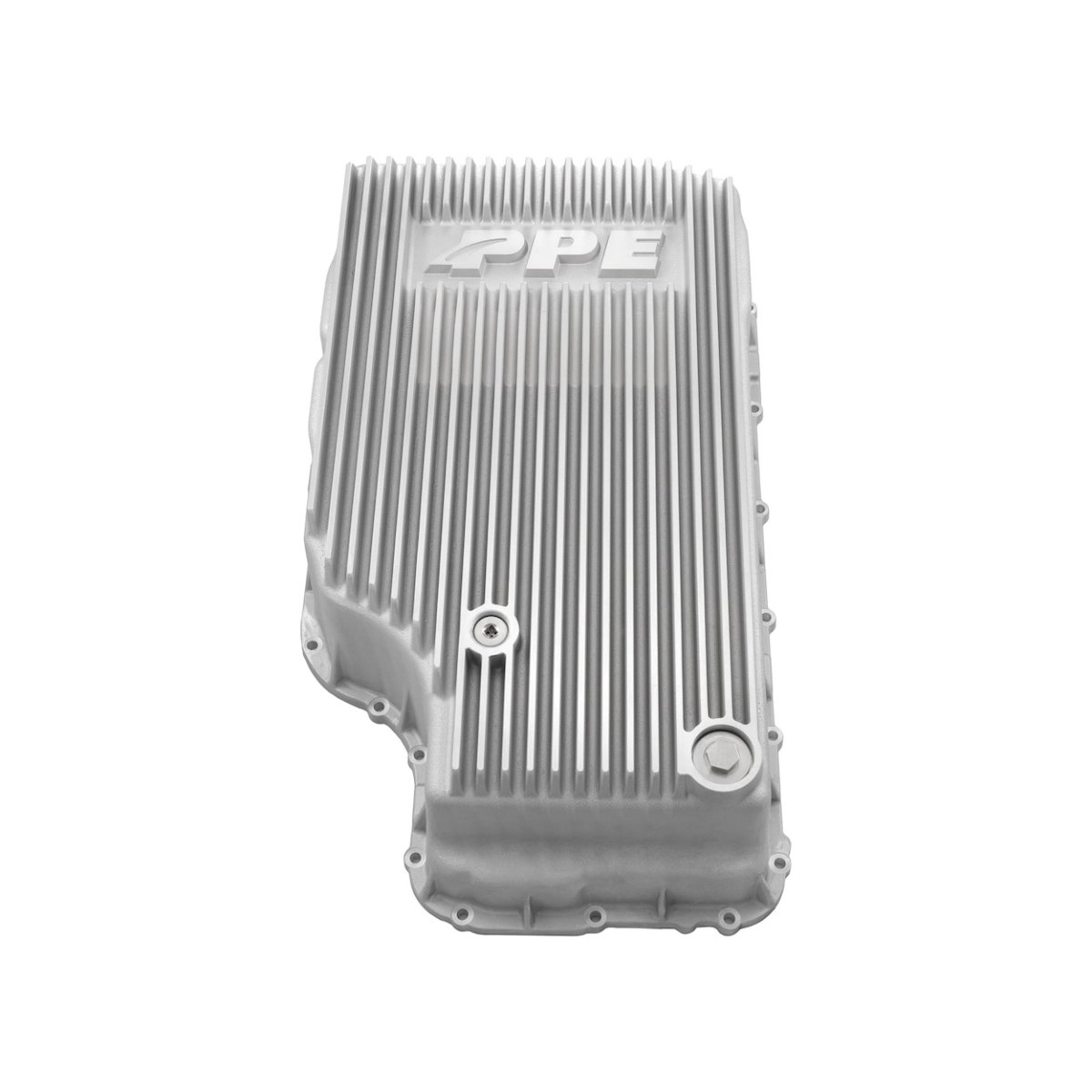

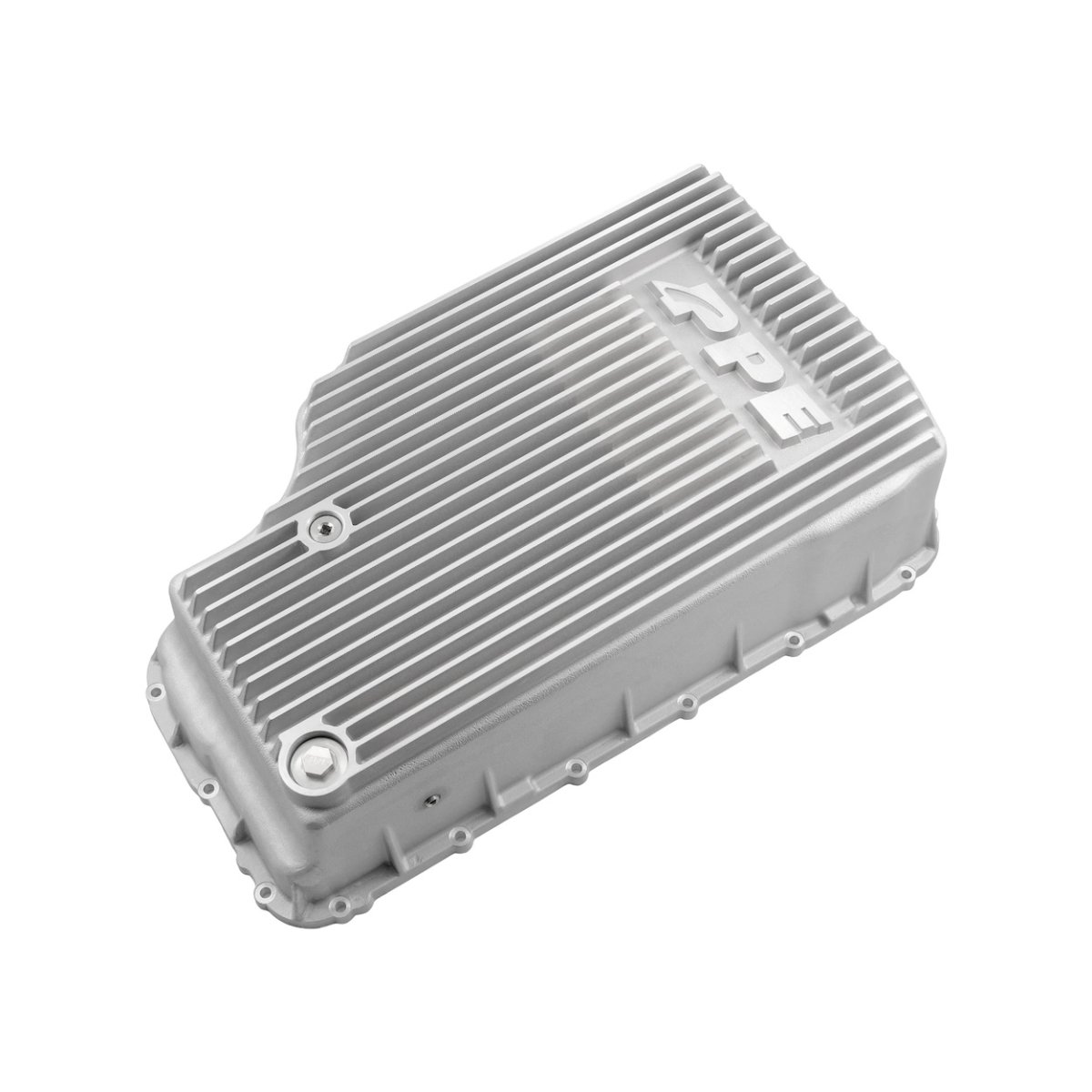

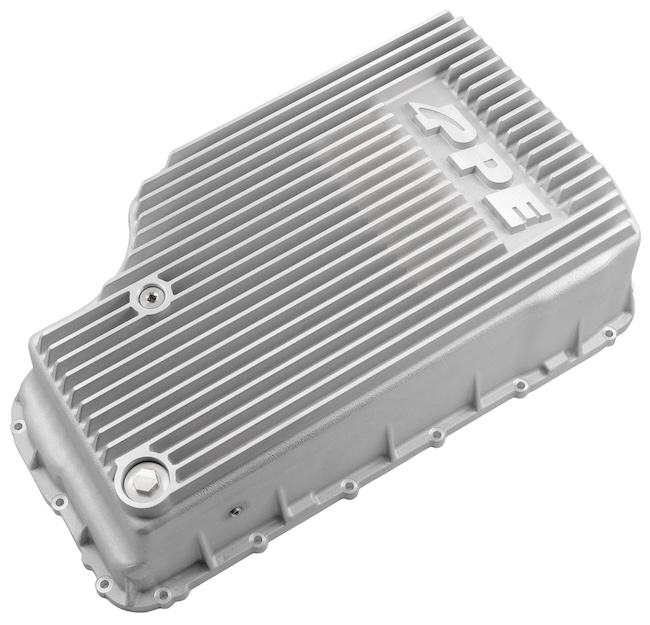

PPE 328053500 Deep Transmission Pan with Raw Finish for 2020-2025 Ford 6.7L Powerstroke F-250/F-350/F-450 with 10R140 Transmission

PPE’s Heavy-Duty DEEP 10R140 Transmission Pan holds an extra 8 quarts of fluid and is cast from high-quality A356.0-T6 aluminum alloy for strength and optimum heat dissipation.

The intelligent flat bottom design allows for a complete fluid drain. This new design also features thick, cast external fins and internal baffles that increase surface area and reduce fluid temps. Gussets provide strength and support to the top flange, increasing overall robustness.

The drain port features a one-inch, high-power Neodymium magnet-equipped stainless steel drain plug. Both plugs catch and hold harmful ferrous particles and keep them out of the transmission internals.

Run cooler and stronger with this easy upgrade to your Super Duty.

Key Features

• Deep design increases fluid capacity by 8 quarts
• Made from thick, heat-treated, cast A356.0-T6 aluminum alloy
• .75’’ inch external fins improve heat dissipation, lower transmission fluid temperature, and increase strength

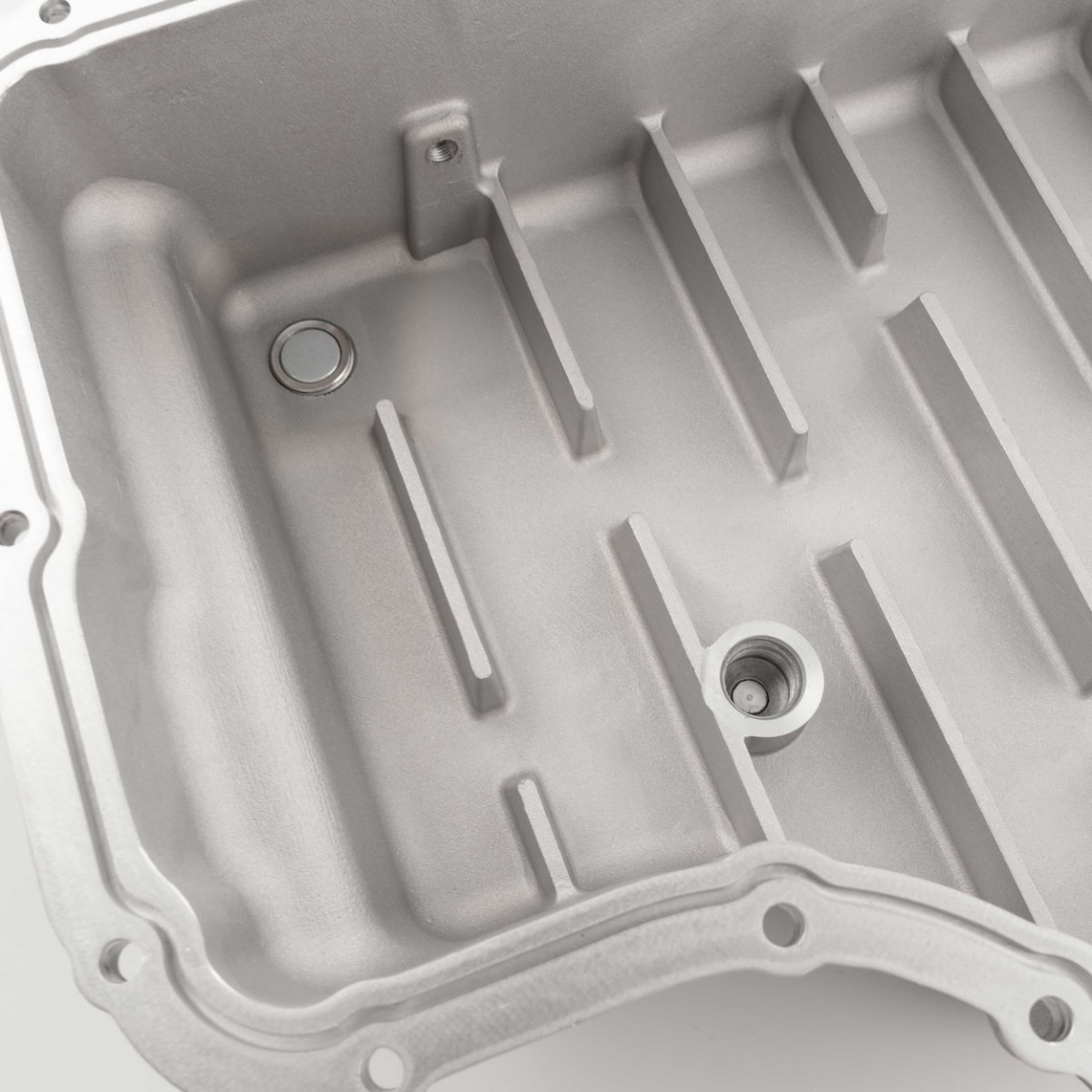

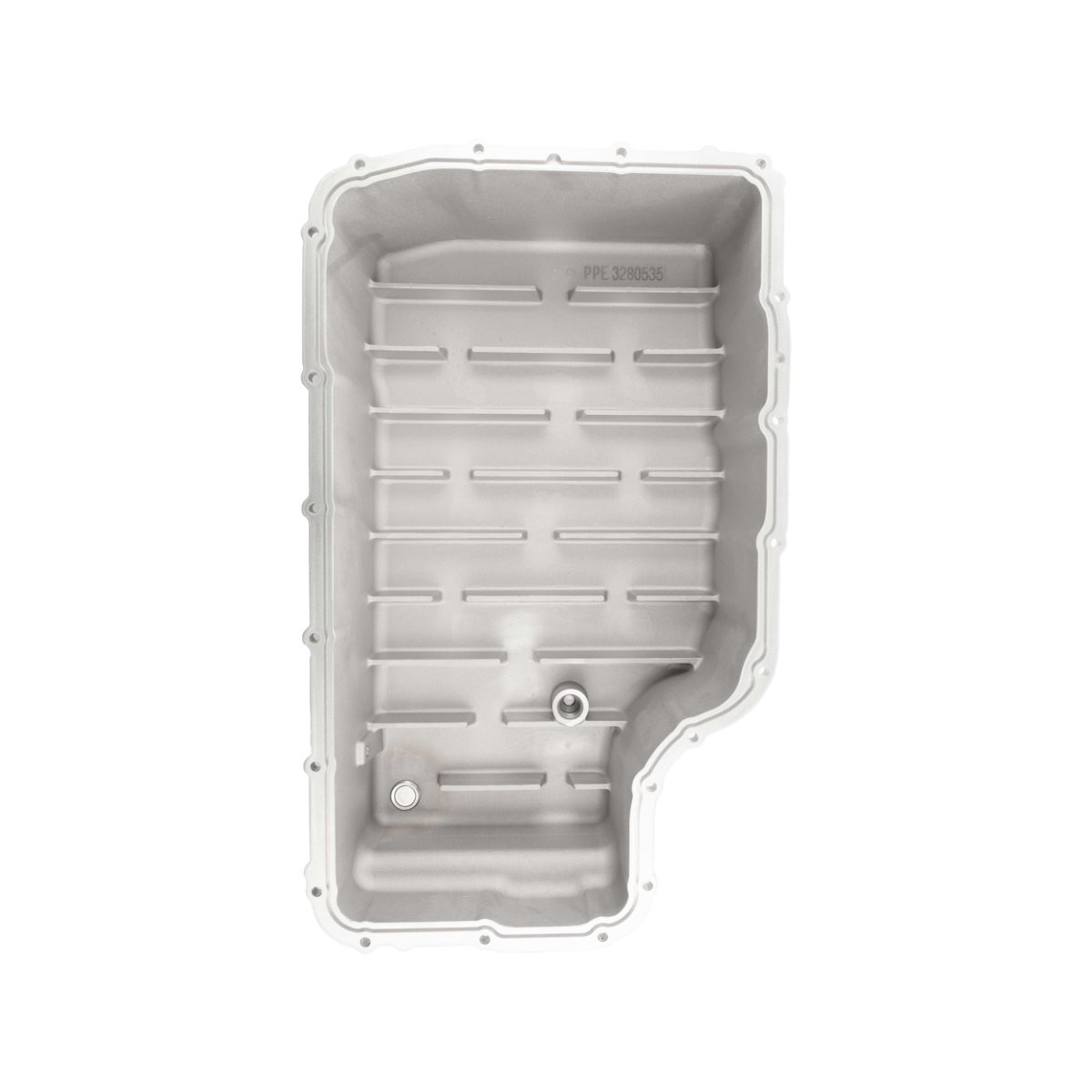

• 1’’ internal baffles increase heat dissipation and reduce fluid sloshing
• Gussets provide support to the top flange and increases overall robustness
• Flat bottom allows for complete fluid drainage

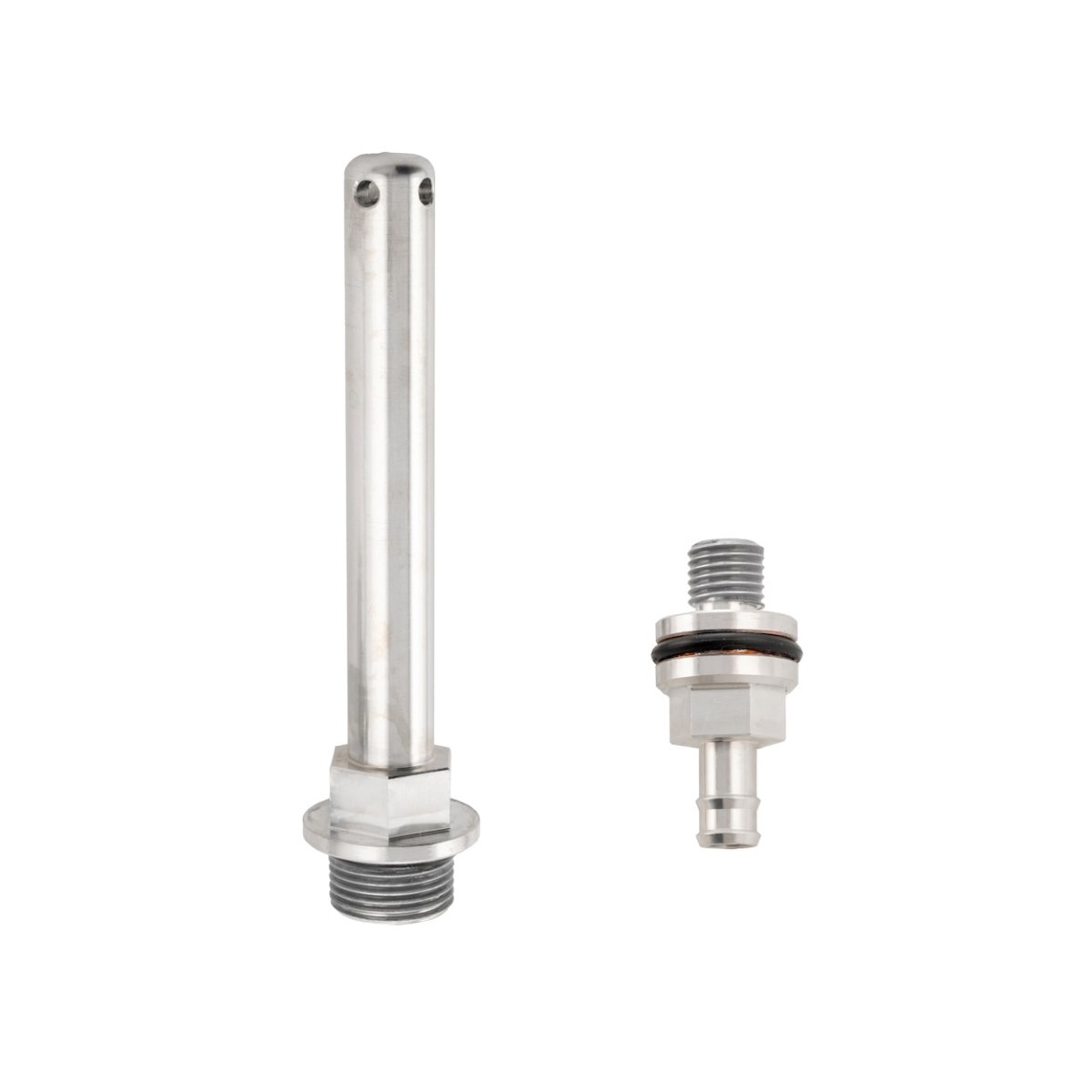

• One-inch Neodymium magnet equipped 304 stainless steel drain plug with Viton O-ring
• Tapped and plugged 1/8-inch NPT port for optional fluid temperature monitoring sensor
• Available in Raw, Brushed, and Black powder coat finish
• Compatible with OEM gasket and filter
• Limited lifetime warranty

Note: No filter needs to be purchased due to the change of dimensions from the factory transmission pan. If a new filter is needed, PPE includes the filter in the kit. If a new filter is not needed, then you would just re-use the factory filter.
