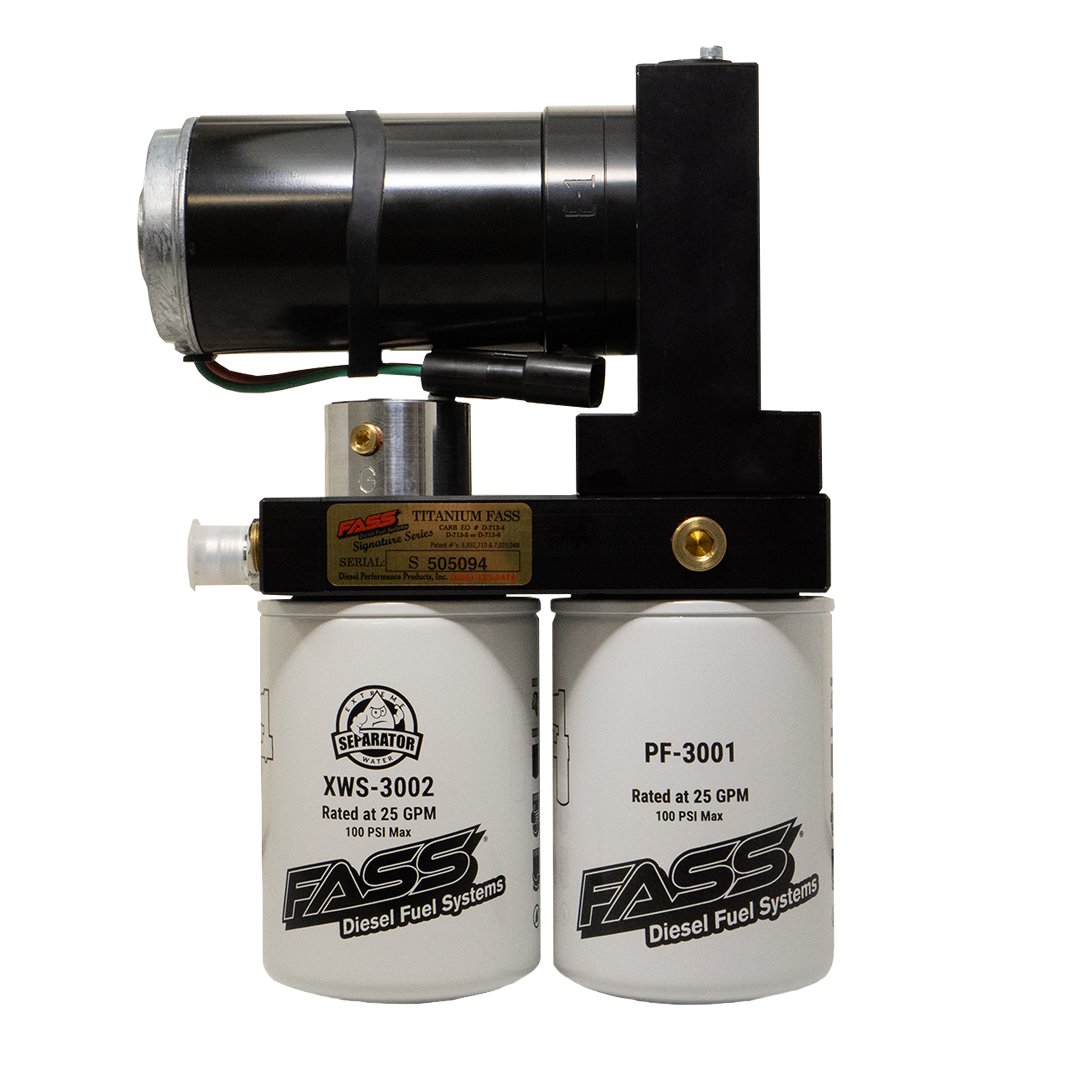

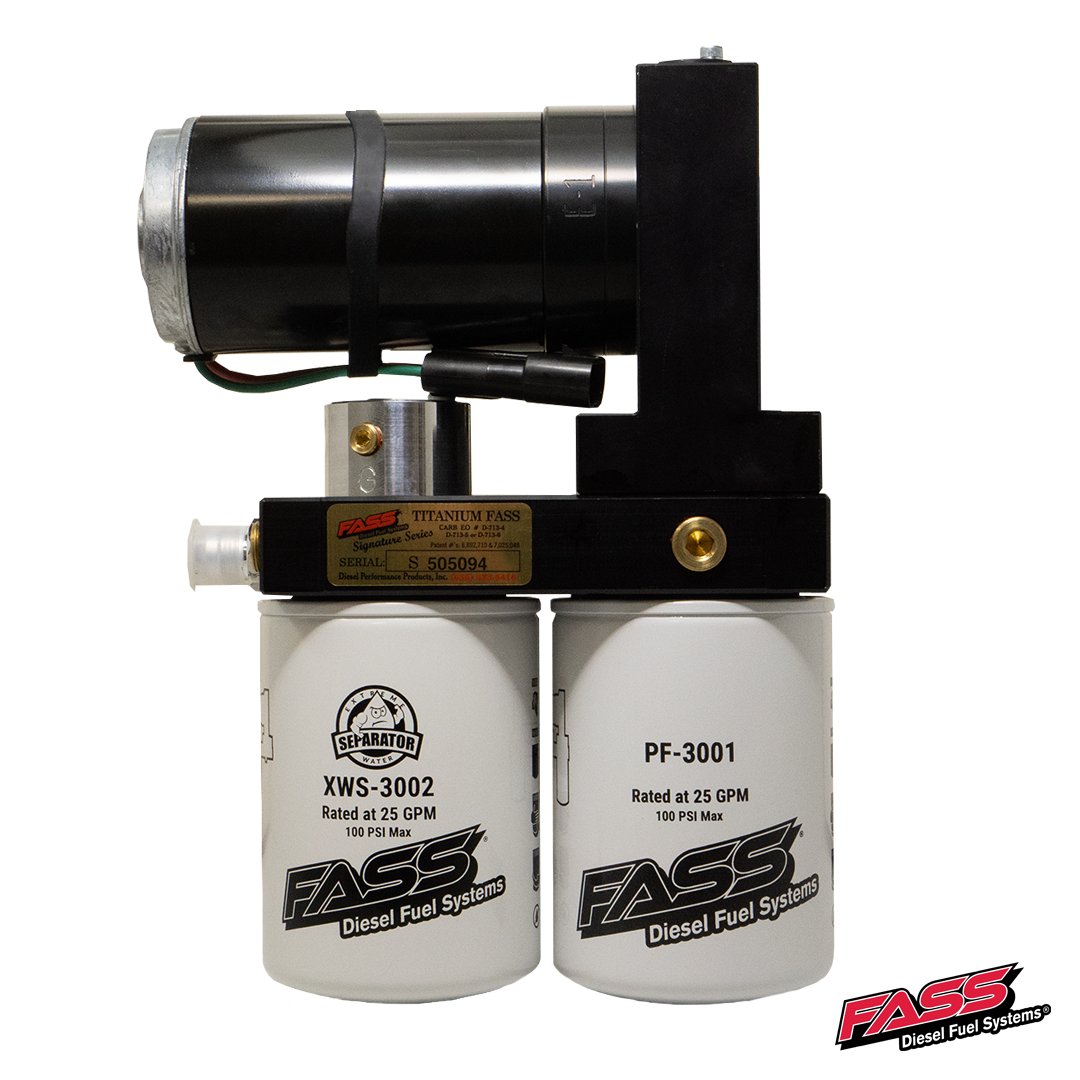

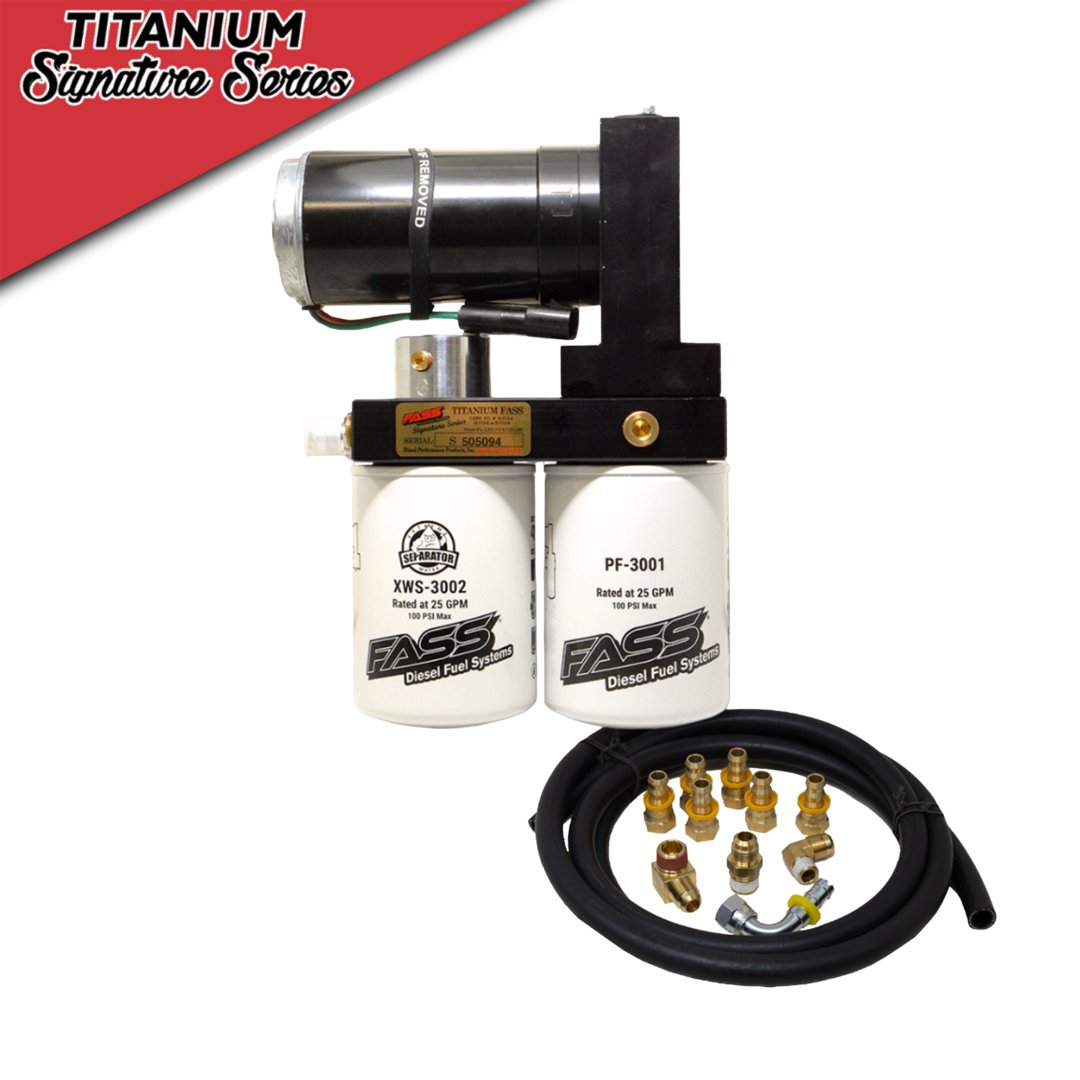

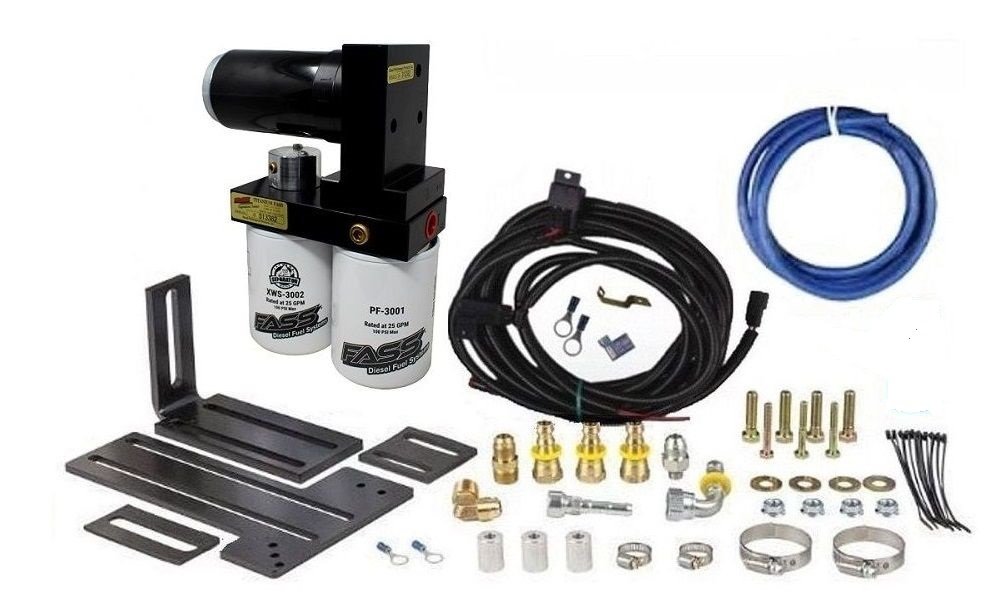

FASS TSF17250F220G Titanium Signature Series 250F 220 GPH @60-65 PSI Fuel Pump for 2011-2016 Ford 6.7L Powerstroke
Fits
Change VehicleProduct isn't compatible with
Add a FASS Diesel Fuel Heater Kit
Add a FASS Powerstroke Filter Delete Kit
Add a FASS Fuel Sump Kit
Installation Instructions
FASS Titanium Signature Series TSF17250F220G Details
- Fits 2011-2016 Ford 6.7L Powerstroke
- Rated at 220 Gallons Per Hour
- Supports From 900 Horsepower up to 1200 Horsepower
- Preset at 60-65 PSI Fuel Pressure
This kit includes a FASS BHF-1005 (Bulkhead and Suction Tube Kit). Machined from 6061 T-6 Billet Aluminum. This Bulkhead fitting is designed to mount directly to the factory fuel tank module (sending unit) to allow the FASS to directly draw and return fuel to the fuel tank module, effectively eliminating all 1/4 tank and 1/8 tank issues when installed correctly. The pickup tube is fabricated out of PTFE Teflon which can be easily cut to adapt to different depth of fuel tanks. Properly installed, you can safely operate down to approximately 0 miles until empty.
