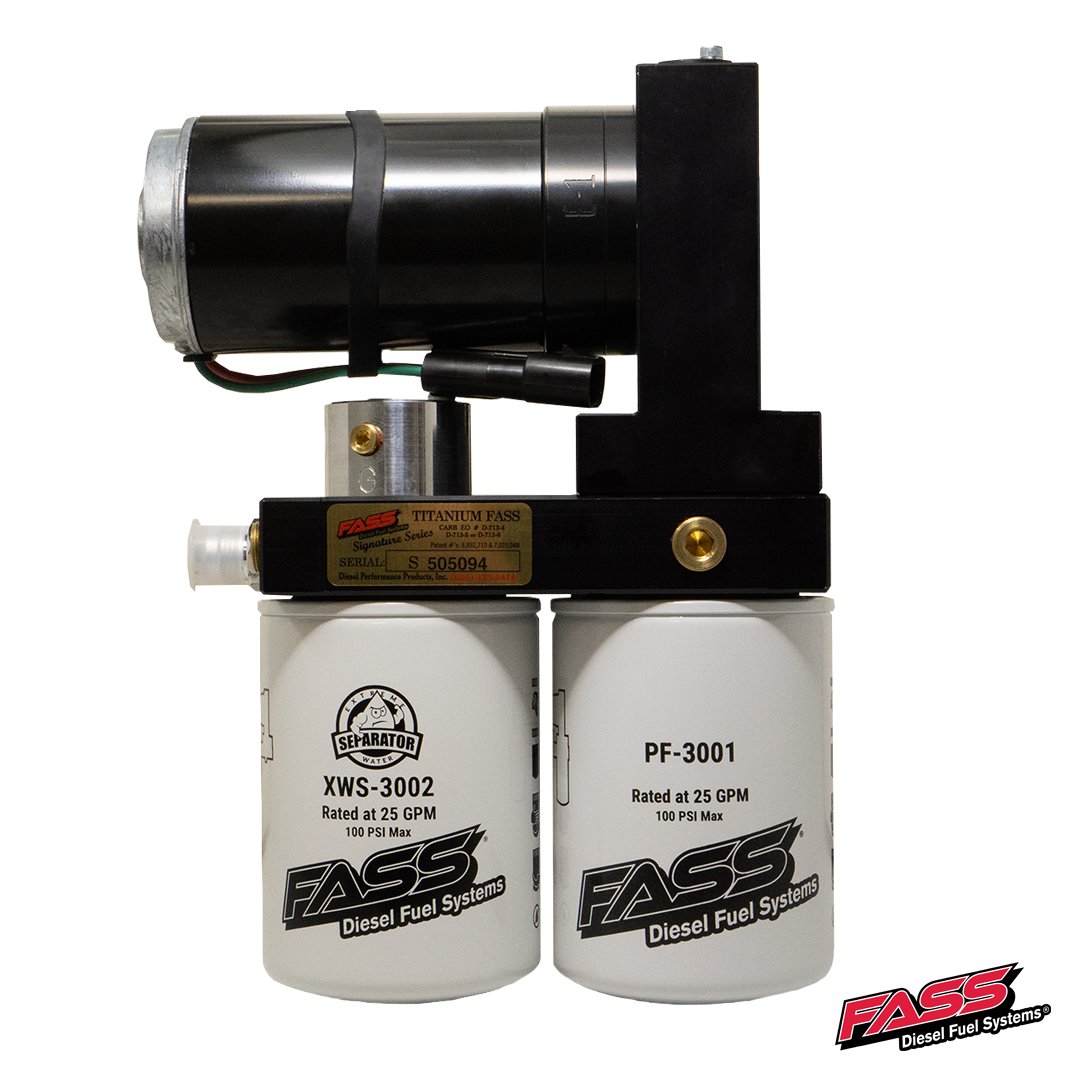

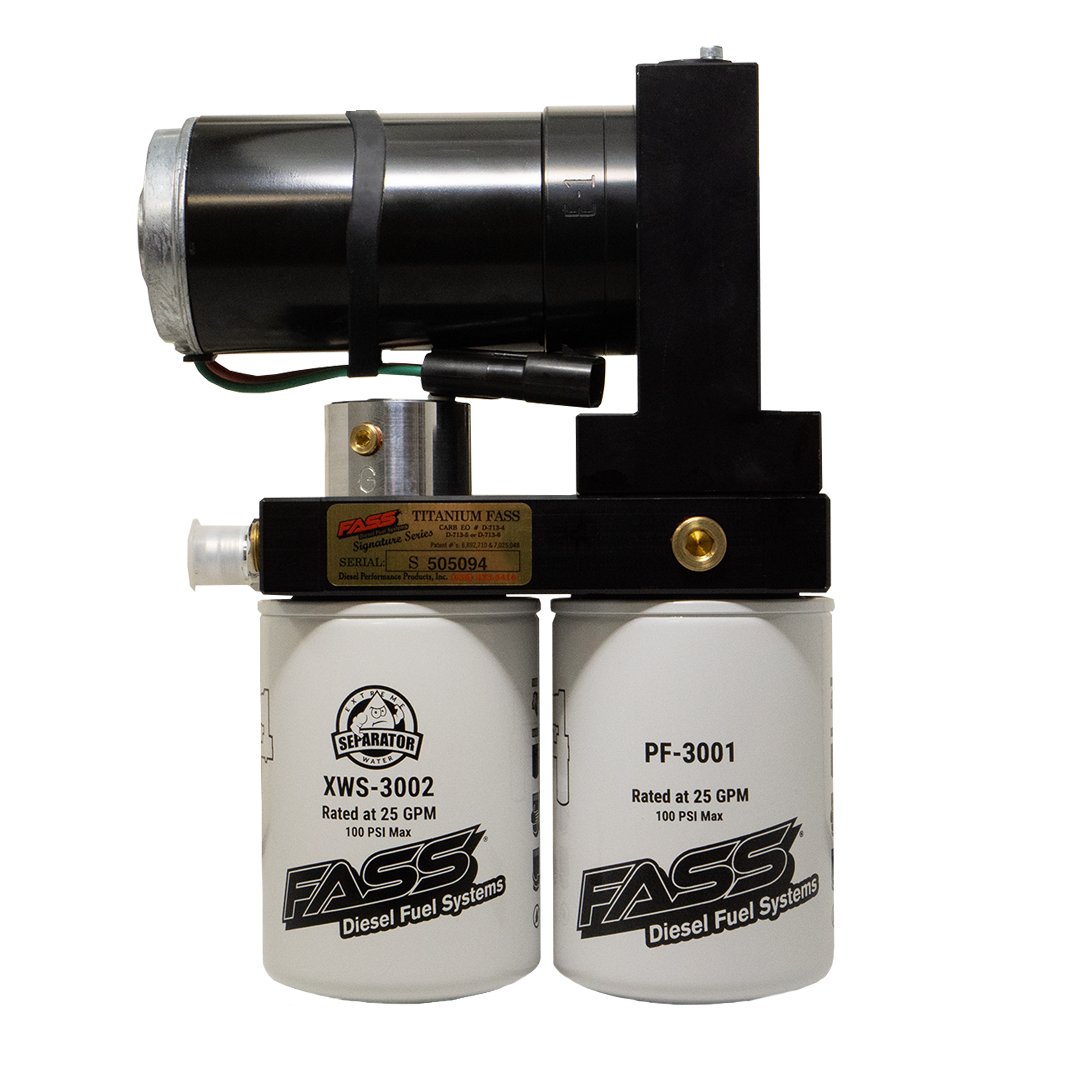

FASS TSF14250F220G Titanium Signature Series 250F 220 GPH Fuel Pump for 1999-2007 Ford 7.3L & 6.0L Powerstroke

In Stock
Part #: TSF14250F220G UPC: 850044106547
$856.90
Now $759.05
Fast Free Ground Shipping

Add a FASS Diesel Fuel Heater Kit

Add a FASS Powerstroke Filter Delete Kit

Add a FASS Fuel Sump Kit

ADD TO CART ($759.05)


Installation Instructions


FASS Titanium Signature Series TSF14250F220G Details

The Titanium Signature Series diesel fuel system from FASS was engineered for exceptional performance, longevity and reliability. FASS knows their product is so well built they back it with a limited lifetime manufacturer warranty. Fass Titanium Signature Series fuel pumps remove potentially harmful and destructive fuel contaminants like water, air and general debris. They also increase your horsepower & fuel economy while lowering your maintenance costs & emissions. FASS Titanium pumps make for a far more efficient combustion event, creating far less soot and particulate matter. FASS pumps prolong diesel particulate filter (DPF) and exhaust gas recirculation (EGR) life, meaning less wear and tear on many engine and exhaust components as well as improved miles per gallon. Every diesel truck needs a FASS!





Key Features

  • Fits 1999-2003 Ford Super Duty 7.3L Powerstroke
  • Fits 2003-2007 Ford Super Duty 6.0L Powerstroke
  • Rated at 220 Gallons Per Hour
  • Supports From 600 Horsepower up to 900 Horsepower
  • Preset at 60-65 PSI Fuel Pressure

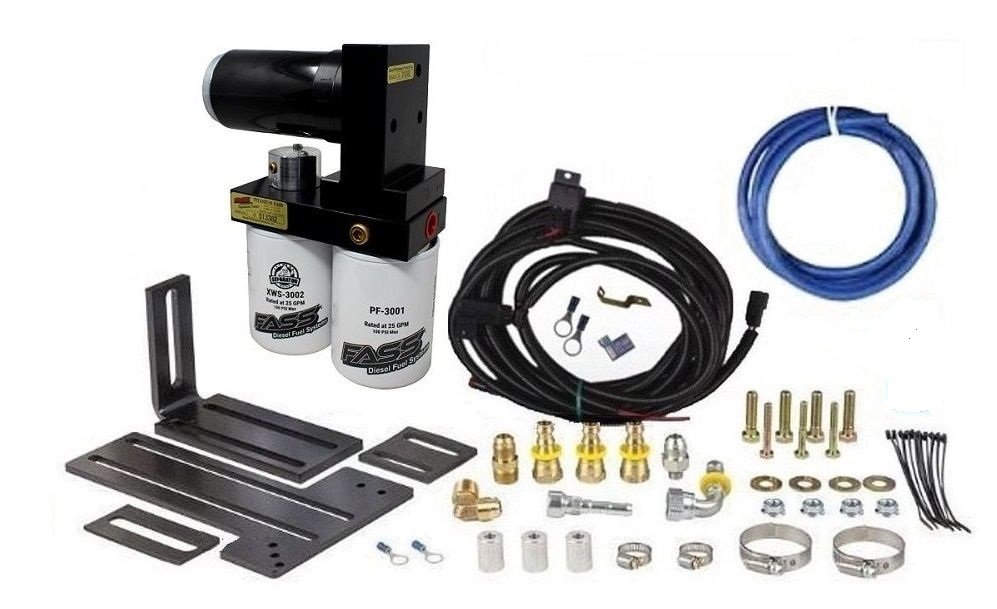

  • Complete Replacement System
  • Included Bolt On Bracket for Easier Installation
  • Improved Cold Weather Starts
  • Smoother Engine Idle
  • FASS Whisper Technology Reduces Noise Levels, Not Flow Rates
  • Performance Radius Cuts within the Aluminum Housing Create Smooth Fuel Flow
  • Mass Flow Return Continuously Polishes Your Fuel & Prevents Cavitation

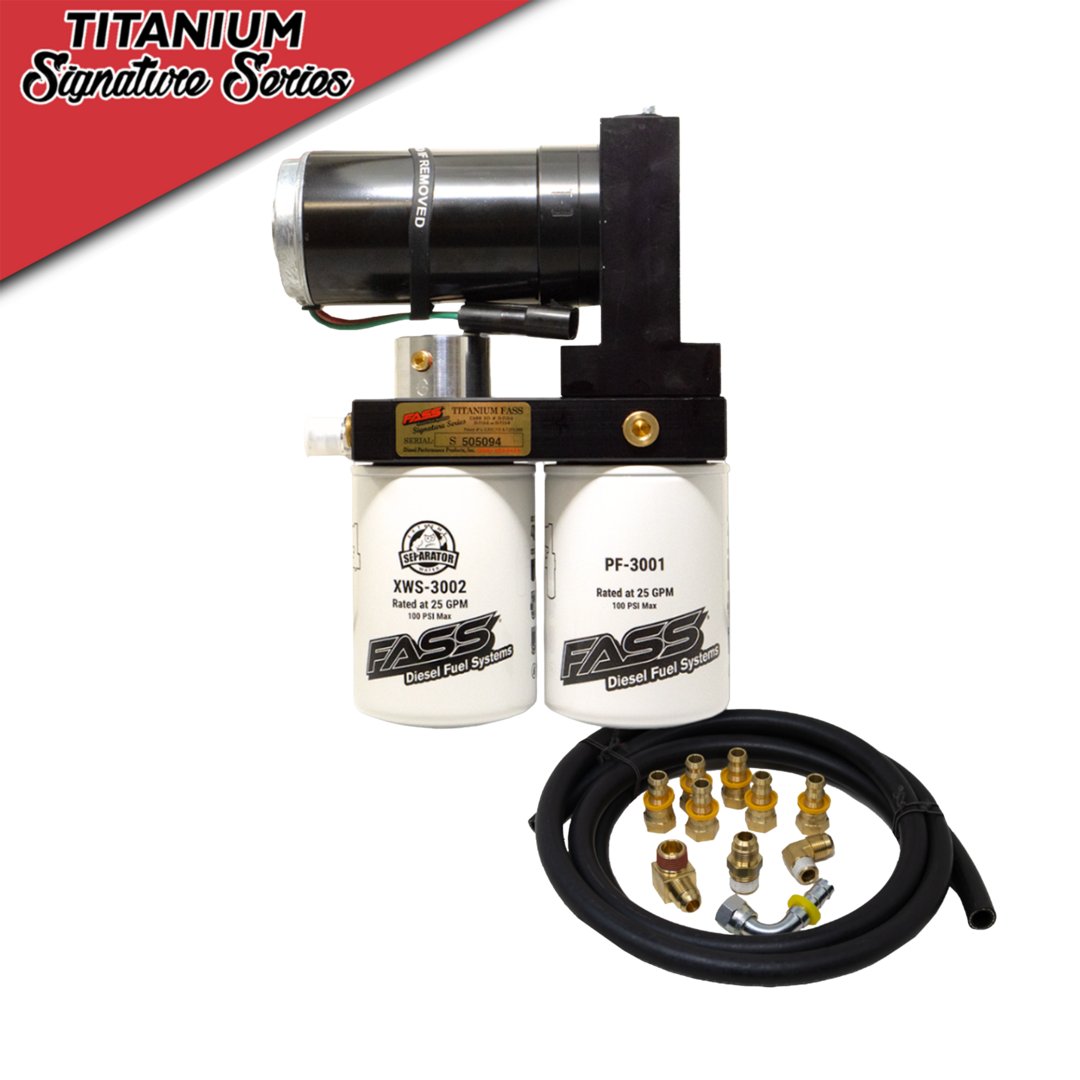

This kit includes a Bulkhead Fitting and Suction Tube.  Machined from 6061 T-6 Billet Aluminum, the Bulkhead fitting functions as both a suction tube and return and features a 5/8” Suction Tube along with a ½” Fuel Return Port. This new and improved version of the previous FASS Suction Tube allows you to plum your FASS return line directly to your bulkhead fitting, eliminating all cutting of the filler neck and significantly speeding up the installation process. The pickup tube is fabricated out of PTFE Teflon which can be easily cut to adapt to different depths of fuel tanks. Properly installed, you can safely operate down to about 1/8 tank of fuel.





FASS Titanium Signature Series fuel pumps come with all the features for which FASS is known, in a compact package for a smaller profile – without sacrificing any of the power and performance you would expect in a heavy duty diesel fuel lift pump and filtration system. A FASS Titanium pump will give you better throttle response, increased injector life and improved fuel mileage. If you own a diesel pickup truck you owe it to yourself to add a FASS Titanium Signature Series fuel pump.
