Banks 13252 Oil Cooler Upgrade Kit for 2001-2007 & 2011-2019 GM 6.6L Duramax LB7, LLY, LBZ, LML & L5P

Improves heat reduction 31% or more on 2001-2007 and 2011-2019 Duramax engines. The older the truck, the greater the gain. Ready for pressure or temperature sensor. Includes all necessary hardware and oil filter.

Key Features

• Cools 31% or better
• More cooling plates for better heat rejection
• Increased cooling stack surface area

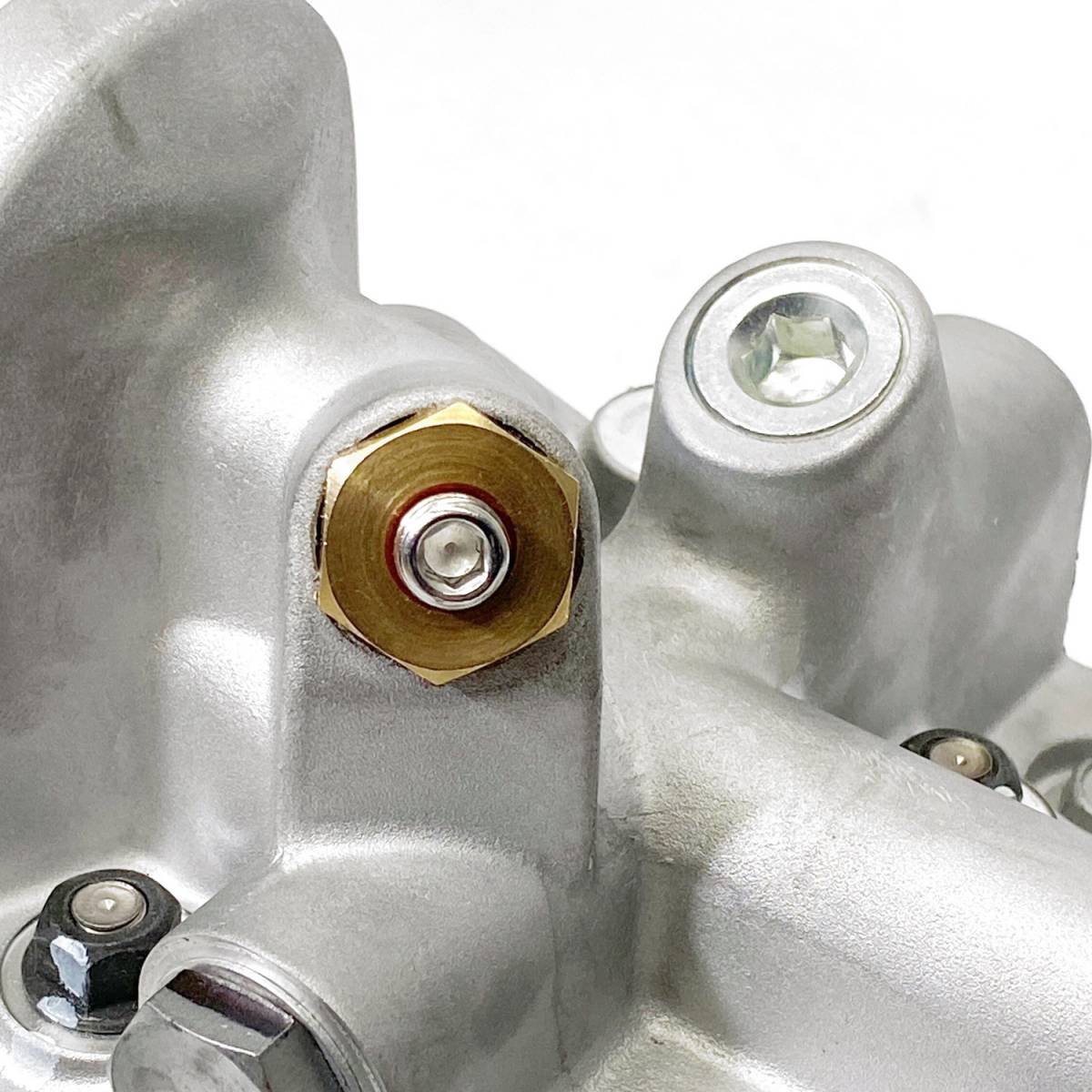

• Pre-installed 1/8-inch NPT sensor port for temp or pressure
• Includes all hardware
• Includes Baldwin B40150 oil filter

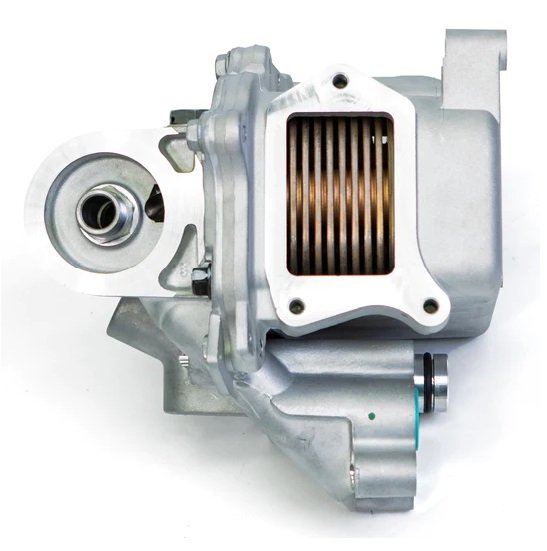

The upgrade kit’s performance improvement is primarily due to the 19-plate cooling stack found in the 2020 Duramax L5P oil cooler compared to the 14-plate stack in the 2017-2019 model. These improvements will be even greater on 2001-2007 and 2011-2016 Duramax engines, which came with only 10 and 11-plate cooling stacks. The additional cooling plates increase the available surface area for heat transfer, enhancing its ability to shed more BTUs than its predecessors while maintaining proper oil pressure.

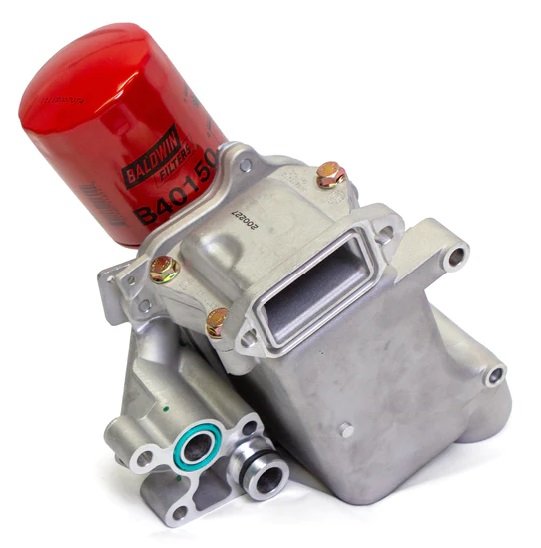

The Banks Oil Cooler Upgrade Kit fits all 2001-2007 and 2011-2019 Duramax engines and includes everything necessary for installation, including a Baldwin B40150 oil filter, a 1/8” NPT sensor port pre-installed ready for oil temperature and or pressure sensor installation, as well as all necessary hardware, gaskets, and thread locker.

After testing all available filters, Banks chose the Baldwin B40150 for its superior filtration and oil pressure retention. The new filter meets or exceeds OEM specs, providing 99.8% efficiency at 30 microns, 99.1% at 25 microns, and 94.2% at 20 microns. The spin-on filter features an Anti-Drainback Valve and 25 PSID By-Pass Valve.
