Ag Diesel Solutions 32100 Performance Module for 2004-2007 CAT Acert C11 & C13
Fits
Change VehicleProduct isn't compatible with
Installation Instructions
Ag Diesel Solutions Performance Modules 32100 Details
Ag Diesel Solutions performance modules from PSI Power increase your vehicle's power safely and efficiently, giving you better fuel mileage in a vehicle warranty-friendly package. Rather than plug into the OBD-II port and communicate with the ECM like a traditional tuner, in-line power modules from Ag Diesel Solutions intercept the factory ECM signal en route to the fueling systems. The intercepted signal is then modified by the power module and continues on, providing all the benefits of efficiency and performance programming without ever communicating with the factory ECM. This plug-and-play tuning means there is no "footprint" in the ECM, and as long as you remove the module from your vehicle before taking it in to the dealership for warranty or service work, they will never know it was installed, keeping your valuable factory warranty intact.
Key Features
- Add Horsepower, Torque and Fuel Mileage
- Multiple Power Levels to Choose From
- Change Power Levels On-The-Fly
- Won't Void Your Factory Warranty (Remove the Module Before Service)
- Engineered, Designed and Manufactured in the USA
- US-Based Customer Service and Tech Support
- Comes with Installation Instructions with Photos
- 3 Year Manufacturer Warranty
Works in the following:
2004-2007 CAT C11 & C13 Acert Engines
- ECM # KCA1, KCB1, JAM1 and up (70 pin ECM connector)

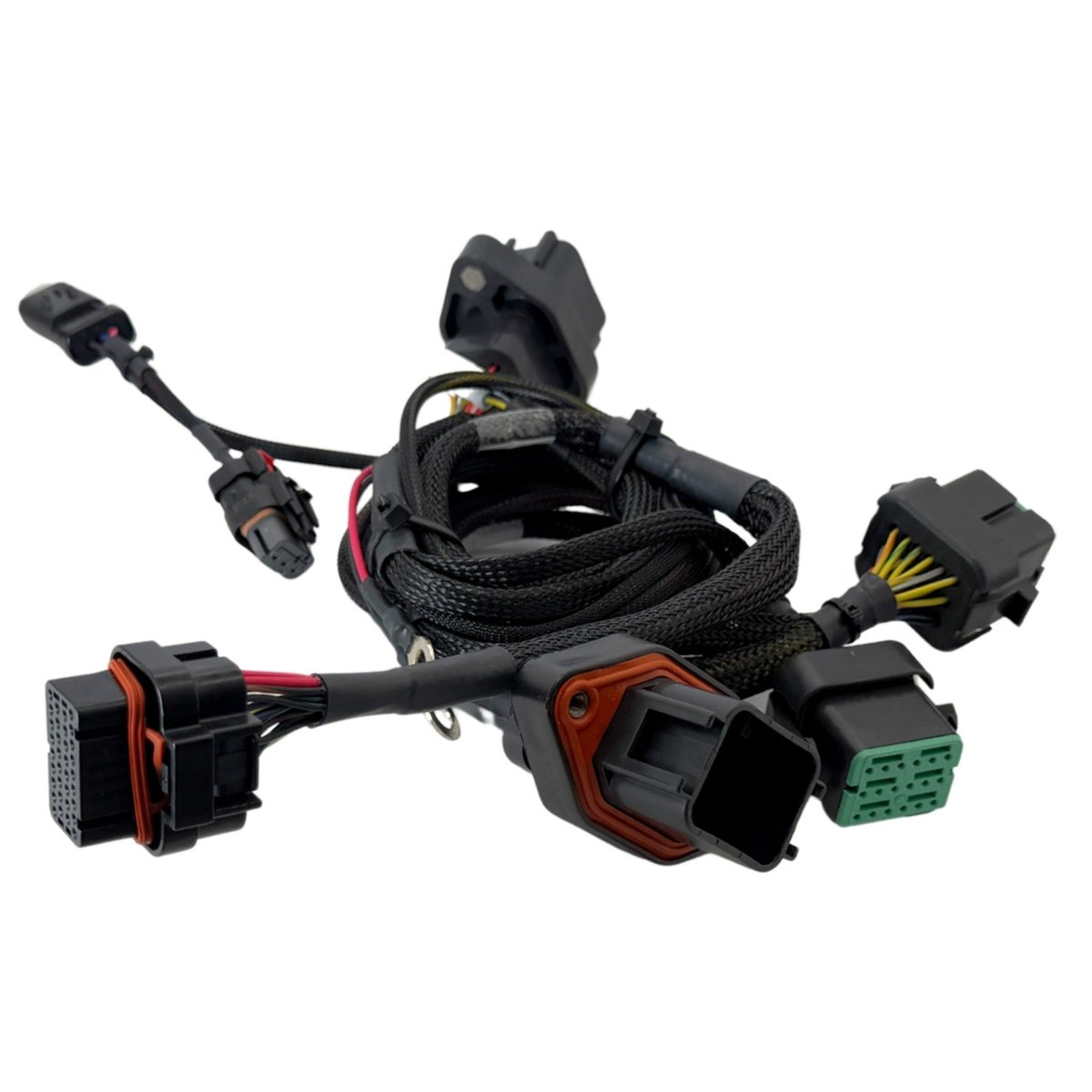

The adjustable four position switch allows you to adjust on-the-fly from Stock, +15, or +30% Horsepower. There is no ECM flash required. Instead the module receives the data from the ECM and optimizes the signal to the engine to improve both power and fuel efficiency. True Plug-and-Play connectivity means you won’t need to cut or splice any wires. Just connect the Heavy Duty Truck Edition module into your existing factory connectors.
The above module is shown in the stock position. Stock is all the way to the left (counter clockwise). Move the rotary switch to the Middle for the Low Position and to the far right for the High Position.

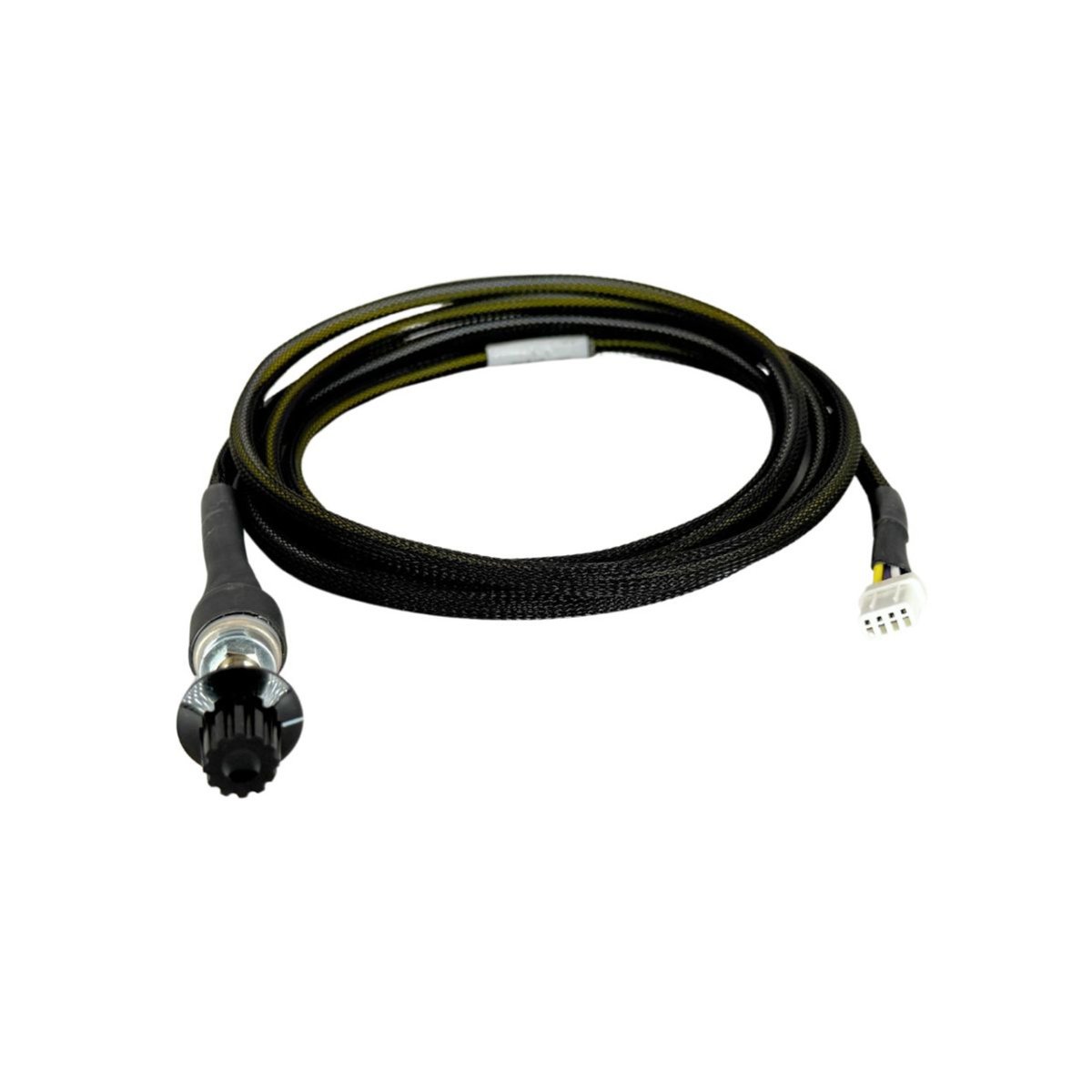

Now you can control the power level of your module with the included mechanical switch, or Agricultural Diesel Solution’s Bluetooth Connect App. The easy to use Bluetooth feature is compatible with iPhone5 & newer, Android 7.0 & newer, and Samsung S7 & Newer. The Bluetooth has a 30 foot range. To download the application, go to your Apple Store for Apple devices, or the Google play store for android devices. Search “Ag Diesel Connect.” After you download and open the App, you’ll be able to see information on your diesel such as RPM and injector duration.
